JETCORE-FC || Jetcore Flight Controller Board

Rs. 153,553.07 Rs. 75,000.00 Save 51% Pre-order
Shipping calculated at checkout.
Color: Black
Cube: None
Jetson: None

Exclusively for you

Pickup available at Vecros

Usually ready in 24 hours

The JETCORE-FC, also known as the JETCORE Flight Controller Board, is engineered for skilled pilots seeking superior performance. Equipped with sophisticated features that deliver precise handling and rapid responsiveness, it ensures smooth and accurate flight control. Combining advanced technology with scientific precision, this board is essential for professional drone operators.
Payment
American Express
Diners Club
Maestro
Mastercard
PayPal
RuPay
Visa
Color: Black
Cube
Jetson

JetCore Flight Control Board

Overview

The JetCore Flight Control Board is an advanced, all-in-one solution that combines the capabilities of the JetCore Carrier Board with the Cube Flight Controller. Designed for high-performance robotics, drones, and AI edge computing applications, this integrated board offers robust connectivity, real-time processing, and precise flight control in a compact form factor. Its rugged design ensures reliability in industrial and outdoor environments.

Key Features

  • Integrated Design: Combines JetCore Carrier Board and Cube Flight Controller for streamlined performance.
  • AI-Ready: Optimized for NVIDIA Jetson Xavier NX, Orin NX, and Jetson Nano modules, supporting JetPack 4.x and 5.x (LTS).
  • Comprehensive Connectivity: 1 x USB 3.0 (FPC Type), 6 x USB 2.0 (FPC Type), 1 x USB 2.0 (Micro USB for Debugging), 1 x Gigabit Ethernet (RJ45), 1 x Micro HDMI 2.0 (supports up to 3840 x 2160 resolution), 12-lane CSI-MIPI (via Daughterboard Connector), 2 x SPI, 1 x CAN, 1 x I2C, 1 x UART (all JST GH connectors), GPIO and PWM support.
  • Storage Expansion: M.2 Key M interface for NVMe SSD and SD card slot for additional storage.
  • Environmental Monitoring: Integrated dual BMI088 IMUs for temperature and motion sensing.
  • Security: Built-in Crypto Auth IC for enhanced data protection.
  • Power Supply: Supports 5V–25V DC input.
  • Durability: Operates efficiently in extreme temperatures ranging from -40°C to +85°C.
  • Software Compatibility: Compatible with QGroundControl (QGC), Mission Planner, ArduPilot, and PX4.

Below are the key technical specifications of the JetCore Flight Control Board integrated with the JetCore Carrier Board.

Specification JetCore Flight Control Board
Jetson Module Support NVIDIA Jetson Xavier NX, Orin NX, Orin Nano
Power Input XT30 Connector, up to 6S LiPo (25.2V max)
USB Ports 1 x USB 3.0 (FPC), 6 x USB 2.0 (FPC), 1 x Micro-USB (Debug)
Ethernet 1 x Gigabit Ethernet (RJ45)
HDMI Output 1 x Micro HDMI 2.0 (up to 4K)
Camera Interface 12-lane MIPI CSI (via FFC)
Storage Expansion 1 x M.2 Key-M slot for NVMe SSD
Peripheral Interfaces 2 x SPI, 1 x CAN, 1 x I2C, 1 x UART, GPIO, PWM
IMUs Triple redundant IMUs with vibration isolation
Barometer Dual redundant barometers
Compass External compass via GPS or expansion port
PWM Outputs 8 x PWM outputs for ESCs/servos
Flight Firmware Support PX4 and ArduPilot compatible
Telemetry & GPS Ports Available via JST-GH connectors
Companion Computer Interface UART and CAN routed to Jetson internally
Failsafe Systems IMU failover, barometer redundancy, vibration detection
Cooling Supports passive and active cooling
Form Factor Integrated design for aerial and ground robotics

For documentation, guides, and community help, please visit https://discuss.vecros.com/

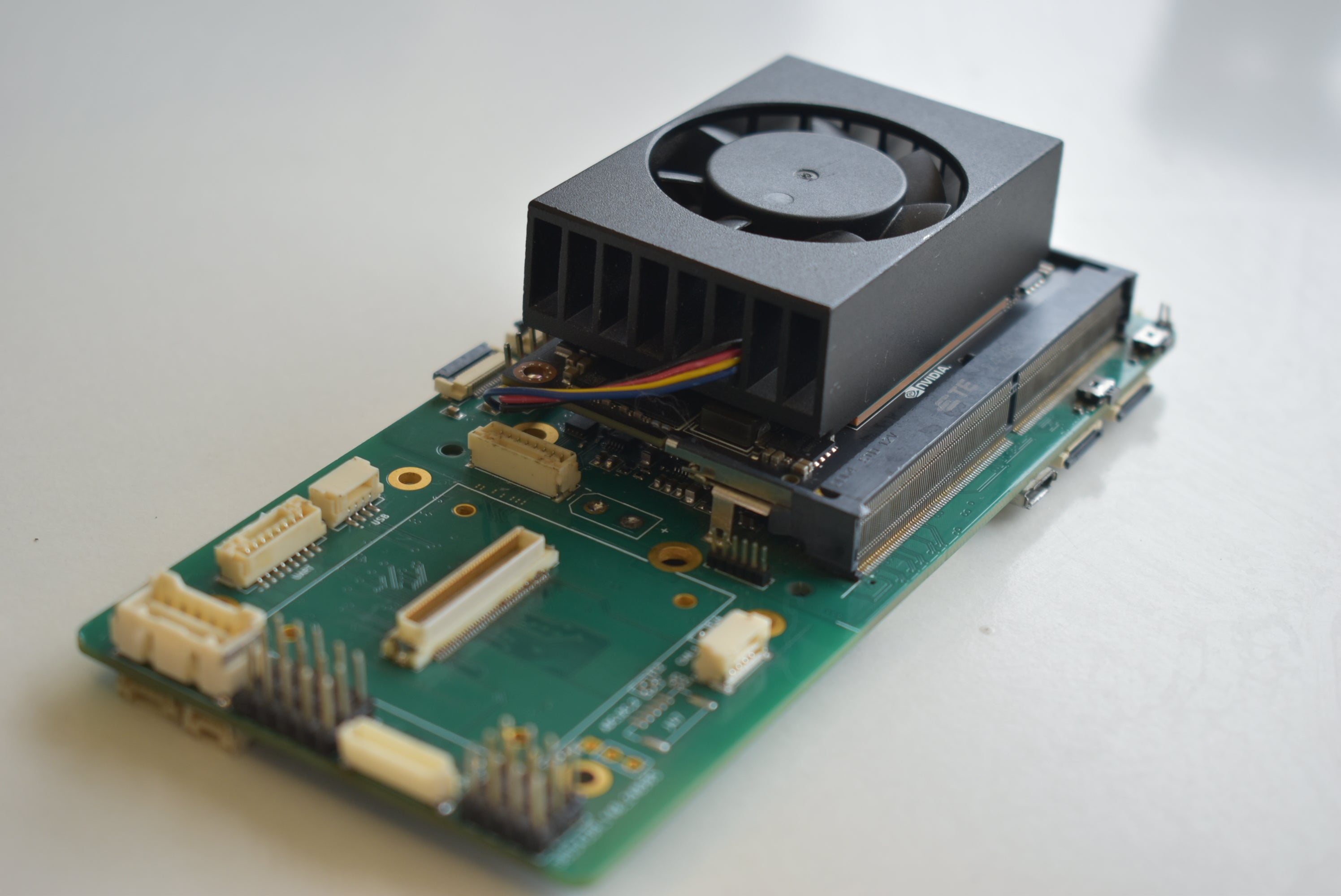

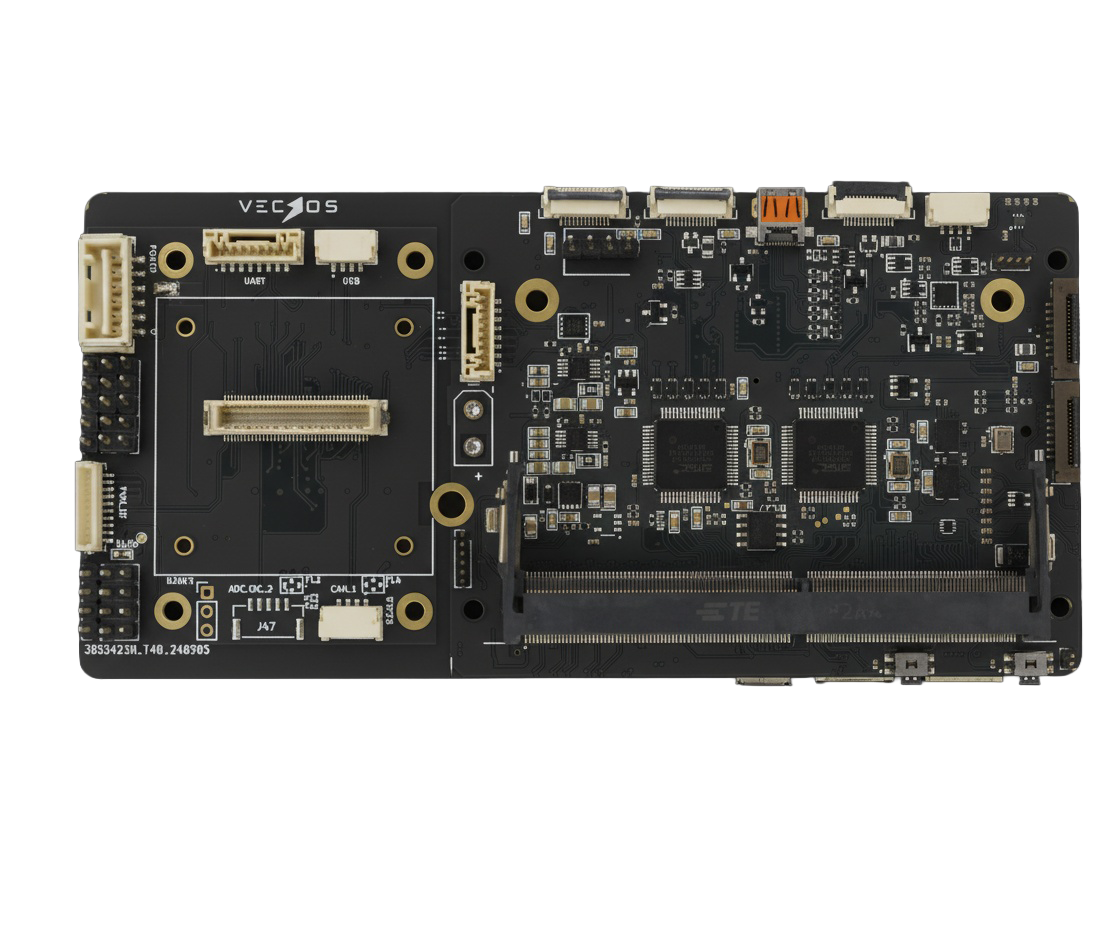

JETCORE-FC || Jetcore Flight Controller Board Image 1 JETCORE-FC || Jetcore Flight Controller Board Image 2

Package Includes

  • 1 x JetCore Flight Control Board
  • 1 x Power Cable
  • 1 x XT30 Connector
  • 1 x Flat Cable
