FFC to Type A connector cable

Rs. 1,199.00 Rs. 1,050.00 Save 12%
Tax included. Shipping calculated at checkout.
Shipping & Returns

Before making a purchase, please familiarize yourself with our shipping and returns process. Note that while some items may be eligible for return, certain restrictions may apply. For any questions regarding our policies, please contact our customer service team.

Product Details

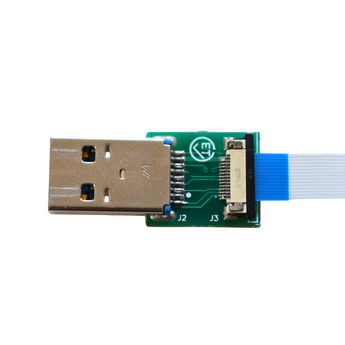

The FFC to USB Type-A Connector Cable is a compact and efficient interface designed to connect flexible flat cables to USB Type-A ports. Its slim design and robust construction make it ideal for use in consumer electronics, prototyping, IoT devices, and custom applications requiring reliable data and power connections.

  • 14 pin FFC Cable x 1
  • Connector x 1
  • Peripheral Board x 1
  • USB Type A Pin x 1
  • Connector Type 1: USB Type-A (Male)
  • Connector Type 2: FFC (Flexible Flat Cable) interface
  • Cable Length: Customizable (10–30 cm typical)
  • Pin Configuration: Standard USB Type-A pinout (VCC, GND, D+, D-)
  • PCB Interface: FFC socket with gold-plated contacts and secure latch mechanism
  • Cable Type: Flexible Flat Cable (1.0 mm pitch, customizable pin count)
  • Compact and Lightweight: Slim profile perfect for tight spaces and portable devices.
  • USB Type-A Compatibility: Standard USB interface supports seamless data transfer and power delivery.
  • Durable Construction: Gold-plated contacts ensure long-term reliability and signal integrity.
  • Flexible Design: The flat cable provides excellent flexibility for compact and curved setups.
  • Plug-and-Play: Easy installation with a secure latch for stable connections.
  • Versatile Applications: Ideal for prototyping, robotics, IoT, and industrial electronics.
  • Customizable Options: Cable length, pin configuration, and specifications can be tailored for specific needs.
  • Operating Voltage: 5V (standard USB power delivery)
  • Current Rating: Up to 500 mA (USB 2.0 standard)
  • Signal Integrity: Supports high-speed data transmission up to 480 Mbps (USB 2.0)
  • Contact Resistance: ≤ 30 mΩ
  • Insulation Resistance: ≥ 100 MΩ at 500V DC
  • Dielectric Withstanding Voltage: 500V AC for 1 minute
  • Operating Temperature: -25°C to +85°C
